Lockformer Angler 1.6 Machine

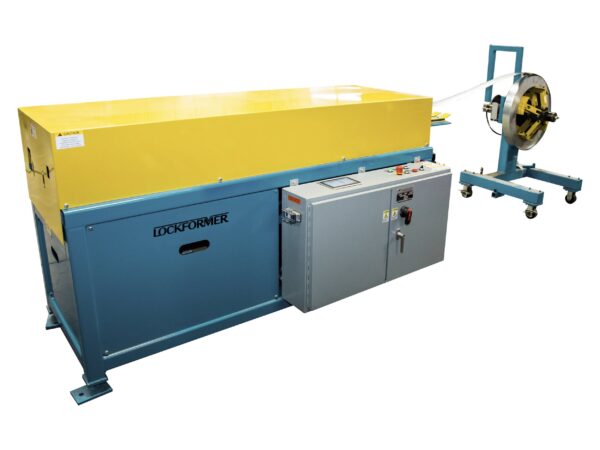

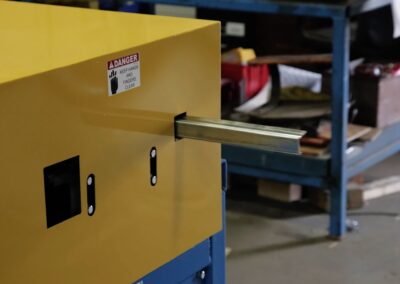

The Lockformer Angler 1.6 Machine is used to produce angle stock for flat oval and round flanges. Producing 90° angles from coil stock, the Lockformer Angler 1.6 also automatically cuts to a desired length, and features complete PLC controls and touch screen for easy operation. The Angler 1.6 produces parts that are a perfect fit to be used with the Lockformer Flanger 2.7 flanging machine. Optional transverse duct connector (TDC) and other special flanges.

Features

From Lockformer, the industry leader in HVAC sheet metal roll forming systems…

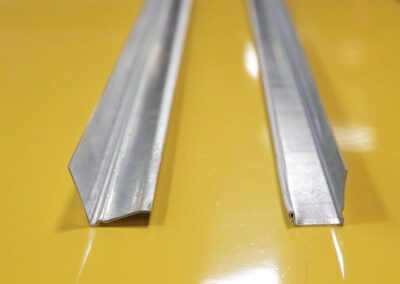

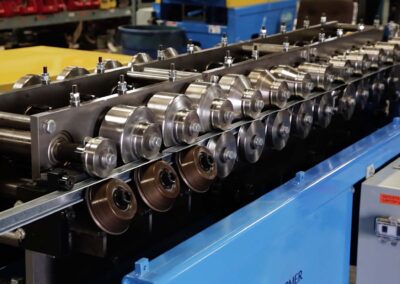

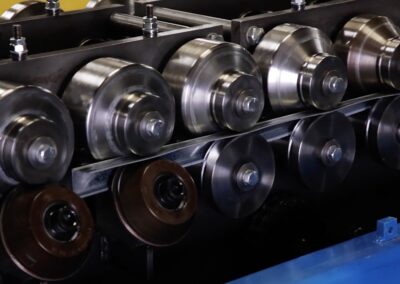

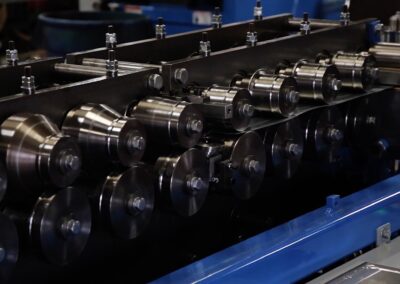

The Angler 1.6 produces 90˚ angled stock from coil stock up to 16-gauge for the production flat oval and round flanges. The machine will bend coil stock with a raw edge on one side and a transverse duct connector (TDC) bend or hem on the opposite edge for safety — 1″, 1-1/2″, or 2″ for single or double wall production. But the key advantage of the Angler 1.6 is its ability to punch pilot holes for screws and cut the angled stock to a desired length. Unlike a press brake which can only produce 10 ft. sections for a maximum 30-inch diameter ring, the Angler allows you to produce precisely the angled stock you need for any diameter rings — even larger than 30-inch round — without a secondary cutting or punching operation. The Lockformer Angler 1.6 also features operator-friendly touch screen PLC controls for easy operation.

The impact of the Lockformer Angler 1.6 on shop productivity is maximized when used in tandem with the Lockformer Flanger 2.7 Machine. The Lockformer Flanger 2.7 takes the angled stock produced by the Angler 1.6 and forms either straight angle or flared angle round and oval flanges for the production of single-wall, double-wall, and oval spiral ring connectors from 8″ to 100″ in diameter for standard 90˚ flange. The combination of the Lockformer Angler 1.6 and Flanger 2.7 truly maximizes shop productivity when producing spiral ring connectors.

Specifications

Model

Capacity

Length

Motor / Voltage

Air Consumption

Dimensions / Weight

Lockformer Angler 1.6 Machine

Up to 16 gauge

20" - 200"

7.5 hp 460V/3 Ph/60 Hz

5 CFM @100PSI

Length: 99"
Width: 42"
Height: 47"
