Lockformer Spiral Tube Formers

Lockformer Spiral Tube Formers are revolutionary automatic spiral tube formers that combine the most advanced technology with one of the smallest footprints in the industry. Unlike other compact models, Lockformer Spiral Tube Formers will not sacrifice speed, power, or technology.

There are two (2) models of Lockformer Tube Formers available:

  • Model 1.2: up to 18 gauge (1.25 mm) thickness with a maximum speed of 235 ft/min (71 m/min)
  • Model 2.0: from 28-14 gauge (0.50-2.0 mm) thickness with maximum speeds of 287-344 ft/min (84-104 m/min)
New call-to-action
New call-to-action

The revolutionary, automatic Lockformer Spiral Tube Formers combine the most advanced technology with one of the smallest footprints in the industry. Available in two (2) models:

Model 1.2: produces spiral pipe up to 18 gauge (1.25 mm) thickness with a maximum speed of 235 ft/min (71 m/min)

Model 2.0: produces spiral pipe from 28-14 gauge (0.50-2.0 mm) thickness with maximum speeds of 287-344 ft/min (84-104 m/min) depending on gauge

Each Lockformer Spiral Tube Former is the most affordable machine in its class. Their unsurpassed features and reliability make them the best value in the industry. These features include:

  • Self-diagnostics and digital length control

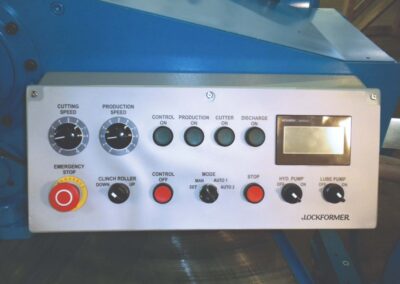

  • Spiral Smart Technology™, user-friendly control system takes the guess work out of set-up and pressure settings for proper operation
  • Flying Slitting Device for silent cutting tubes of 4″ diameter and maximum material thickness of 20 gauge
  • 10″ standard run-off table
  • Decoiler
  • Unbeatable customer service offering technical support and parts
  • Only compact unit in the industry that is fully automatic
  • Ergonomically friendly to the operator

Model

High-Speed Capacity

Diameter Range

Speed

Motor / Voltage

Dimensions / Weight

Model 1.2E

28-18 gauge galvanized steel

28-22 gauge stainless steel

3"- 64"

241 ft/min

15 Hp motor, 230V/60 A Or 15 Hp motor, 460V/ 40A

Special voltages available

Length: 72"

Width: 68"

Height: 62"

Weight: 3,000 lbs.

Model 2.0

28-16 gauge galvanized steel

28-20 gauge stainless steel

3"-100"

High Speed Capacity Mode: 344 ft/min

Heavy Gauge Capacity Mode: 287 ft/min

30 Hp motor, 460V/3 phase/60 Hz, 100A

Special voltages available

Length: 72"

Width: 78"

Height: 62"

Weight: 3,200 lbs.

Lockformer Spiral Tube Formers




Lockformer | Spiral Tube Formers | Model 2.0E



Lockformer | Spiral Tube Formers | Model 1.6HS with Auto Run-Off Table



Lockformer | Spiral Tube Former | Decoiler Demonstration



Lockformer | Spiral Tube Former + Engel ValuePLUS2 Front-End Starter Coil Line | Testimonial: Blanski Energy Management, Inc.

Tube Weight Calculator

Strip Width – 5.394″ (137mm)

26 Gauge (0.019″):
24 Gauge (0.025″):
22 Gauge (0.031″):
20 Gauge (0.038″):

Tube Capacity Calculator

10′ pc./second:
20′ pc./second:
