Lockformer VulcanPlus Plasma Cutting System

The Lockformer VulcanPlus Plasma Cutting System is the benchmark in plasma cutting systems. Loaded with features for unmatched accuracy and precision, this system also has a capacity of 3/8″ and 1/2″ mild steel with a positioning speed of 3,000 IPM Max — the fastest cutting, positioning, and traversing times in the industry. The fixture-welded 3″ x 3″ steel tube construction ensures the frame will be as perfectly aligned today it will be years from now. The virtually indestructible plug-in components are standard and everything is protected — motors and drive systems are never exposed. Plus, the three (3) servo motors, planetary gears, and single-shaft belt are the most accurate in the industry.

Part of the family of Lockformer Vulcan Cutting Systems which also includes:

Get a Quote
Request a 1-on-1 Consultation

Features

Specifications

Video

Gallery

Software

Downloads

Features

The Lockformer VulcanPlus Plasma Cutting System is the benchmark in plasma cutting systems. Loaded with features for unmatched accuracy and precision, this system also has a capacity of 3/8″ and 1/2″ mild steel with a positioning speed of 3,000 in/min Max — the fastest cutting, positioning, and traversing times in the industry. The fixture-welded 3 x 3 steel tube construction ensures the frame will be as perfectly aligned today it will be years from now. The virtually indestructible plug-in components are standard and everything is protected — motors and drive systems are never exposed. Plus, the three (3) servo motors, planetary gears, and single-shaft belt are the most accurate in the industry.

Easy to Use

  • Easy to identify one-piece cartridge consumables are color-coded by process to eliminate parts mix-up and simplify consumable inventory management.
  • New SmartSYNC™ torches with the Hypertherm cartridge automatically set the correct amperage and operating mode, eliminating setup errors.
  • End of life detection lets the operator know when it’s time to change the cartridge.

Minimizes Operating Costs

  • Simplified operation minimizes downtime, troubleshooting, waste and training time.
  • Advanced cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables.
  • Access cartridge data for performance tracking, analyzing usage patterns.

System features:

  • All Premium “plug-in” components
  • Fixture-welded, 3″ x 3″ steel tubing framework
  • Stand-alone control console
  • All axis home positioning using motor torque measurement
  • 8” x 8” steel table leg pads with leveling feature

Drive features:

  • Dual Y drive
  • Double deck, 24 strand steel, precision reinforced radial timing belts
  • HIWIN® linear x-axis bearing and way
  • 3″ diameter x 128″ long, turned, ground and polished Y-axis guidance rail
  • Precision cam followers
  • X-axis brush guard
  • Steel enclosed housing for X-axis servo drive motor

Hypertherm PowerMax65 Sync Plasma Cutter features:

  • 50% duty cycle at 65 amp output
  • Solid-state inverter power supply with output variable from 20 to 65 amps optimum performance on thickness from 28 gauge to 3/4″ metal
  • Conical flow nozzle increases arc energy density for superior cut quality with little dross
  • Patent-pending shield reduces dross buildup and enables smoother drag cutting for a better cut
  • Hypertherm-shielded nozzle design to increase consumable life
  • Universal power supply 220V AC single phase power supply
  • CNC interface and fast-connect torch connection increases versatility
  • Power-cool design cools internal components more effectively for greater system reliability and improved uptime
  • Full 3 year power supply warranty and a 1-year torch warranty

Machine Control features:

  • B&R Machine Controller built for demanding industrial duty applications
  • Lockformer 759 CNC-TS control system with 15″ color graphic industrial touch screen
  • Windows 10 VS Control software architecture
  • Digital drive devices
  • Manual speed increase/decrease override
  • Kerf compensation
  • Auto home sense to set 0/0 automatically
  • Automatic corner slow down
  • Brushless AC servo motors with resolver feedback
  • Remote safety stop switches and current limiting drives for safety

Table features:

  • 1/4″ steel plate table perimeter
  • 3″ x 16 ga. CRS, multi-directional X or Y sheet support slats
  • Slats can be configured for either “side-load” or “endload” of the table
  • Exclusive gull-wing table design
  • Rectangular exhaust plenum at the back end of the table for easy access connection
  • 10″ x 12″ table exhaust ducting of 20 gauge galvanized TDC four bolt connector
  • Strategically located emergency stops [1 = controller; 1 = x-axis carriage]
  • 3 surface milled “L” bracket sheet stops

Software and Computer includes:

  • Rectangular, drop cheek, square to round
  • Round and oval complete
  • Super and manual segmenting
  • Automatic shape nesting and rotational nesting for minimum scrap
  • Holes cutting in fittings/round/slot/square/oval
  • 3-D picture preview and flat pattern layout
  • Splitter vanes
  • Rod re-enforcing holes cut in fitting
  • Insulating cutting software
  • Vulcan parts (special shape CAD program)
  • Two user input station license
  • Easily create and customize — color-coded labels and reports
  • Microsoft Windows 10 Operating System
  • Two printers

Specifications

Software / Computer System: Windows 10® Professional PC with 19″ Monitor and Printer

Machine Control: 7590 CNC-TS and 15″ Color Graphic Industrial Touch Screen

Cutting Unit: Hypertherm PowerMax 65 Sync

Cutting Capacity: 3/8″ mild steel or 1/4″ mild steel

Speed: Positioning speed and max cutting speed are the same at 3,000 in/min

Cutting Area and Table Capacity:

  • Standard: 5 ft x 10 ft
  • Optional: 5 ft x 20 ft
  • Table Capacity: 1,000 lbs

Dimensions / Weight:

  • Length: 164″
  • Width: 81″
  • Height: 58″ ( 5 ft x 10 ft table)
  • Weight: 2,700 lbs

Video

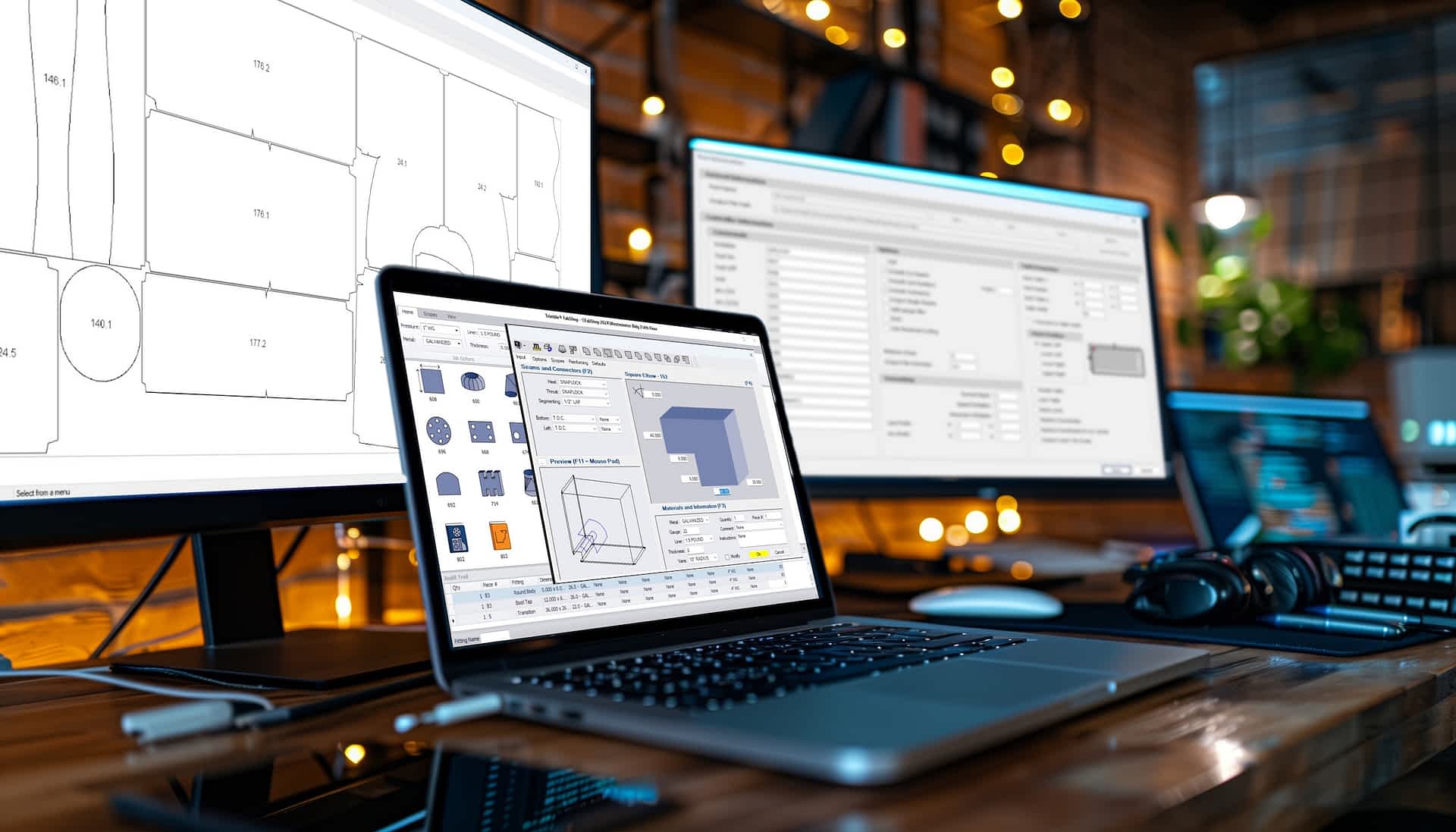

Trimble FabShop CAD • CAM • MEP Software:
The Smarter Software for Sheet Metal Fabrication

Built for Productivity. Trusted by Fabricators.

Trimble® FabShop is a powerful fabrication management platform for sheet metal contractors that simplifies every step of fabrication. Whether you’re producing ductwork or specialty sheet metal components, FabShop simplifies and streamlines the entire process— from part creation to nesting, cutting, and installation.

Originally known as Vulcan Software, FabShop was designed to enhance the performance of Lockformers Vulcan plasma, fiber laser, and waterjet tables, Today, FabShop is fully compatible with a wide range of Mestek Machinery Lockformer and Iowa Precision equipment as well as B&R VSControl III Linux Control Systems and Vulcan Fiber Lasers Mach III & B&R Control Software Platforms. No extra software. No wasted time. Just faster, more accurate fabrication.

FabShop helps reduce material waste, improve production speed, and provide complete visibility into every stage of your shop’s workflow. This all-in-one, cloud-connected solution gives you complete control of your workflows—streamlining operations, boosting output, and eliminating guesswork. Whether you’re running commercial jobs, residential jobs or complex industrial projects, FabShop helps you deliver accurate, install-ready parts efficiently and profitably.

Learn more

Open Architecture

Mestek Machinery and Lockformer are currently in open architecture with the following CAD to CAM Providers:

E

Trimble SysQue CAD Drawing Software

E

Trimble FabShop CAM Software

E

Autodesk CAD Fabrication

E

Autodesk CAM Fabrication

E

FabLink PractiCAD

E

FabLink PractiCAM

E

SDS Shop Data Systems
