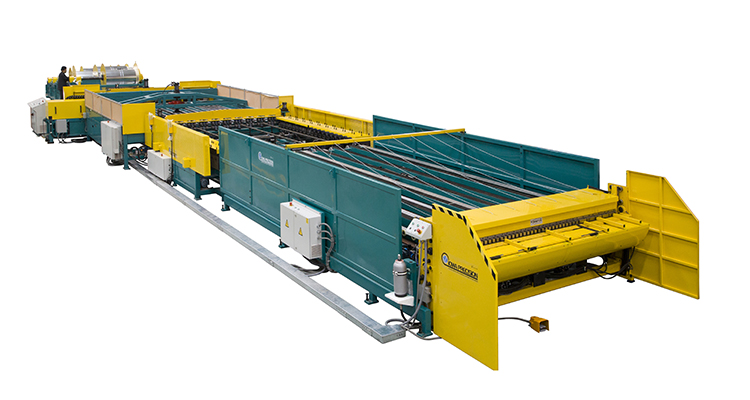

Iowa Precision Fabriduct Infinity Coil Line

The Iowa Precision Fabriduct Infinity Coil line allows automated production of rectangular straight ducts either to coil width/standard duct length or to any duct length from 32″ up to 118″. This new configuration allows HVAC duct fabricators to optimize the production of special length straight ducts and greatly reduces labor costs and production lead times.

New call-to-action
The Iowa Precision Fabriduct Infinity Coil line allows automated production of rectangular straight ducts either to coil width/standard duct length or to any duct length from 32″ up to 118″. This new configuration allows HVAC duct fabricators to optimize the production of special length straight ducts and greatly reduces labor costs and production lead times.

Features include:

  • 25 to 16 gauge
  • Minimum Duct Size 8″ x 10″
  • Capable of producing any duct lengths from 32″ to 118″

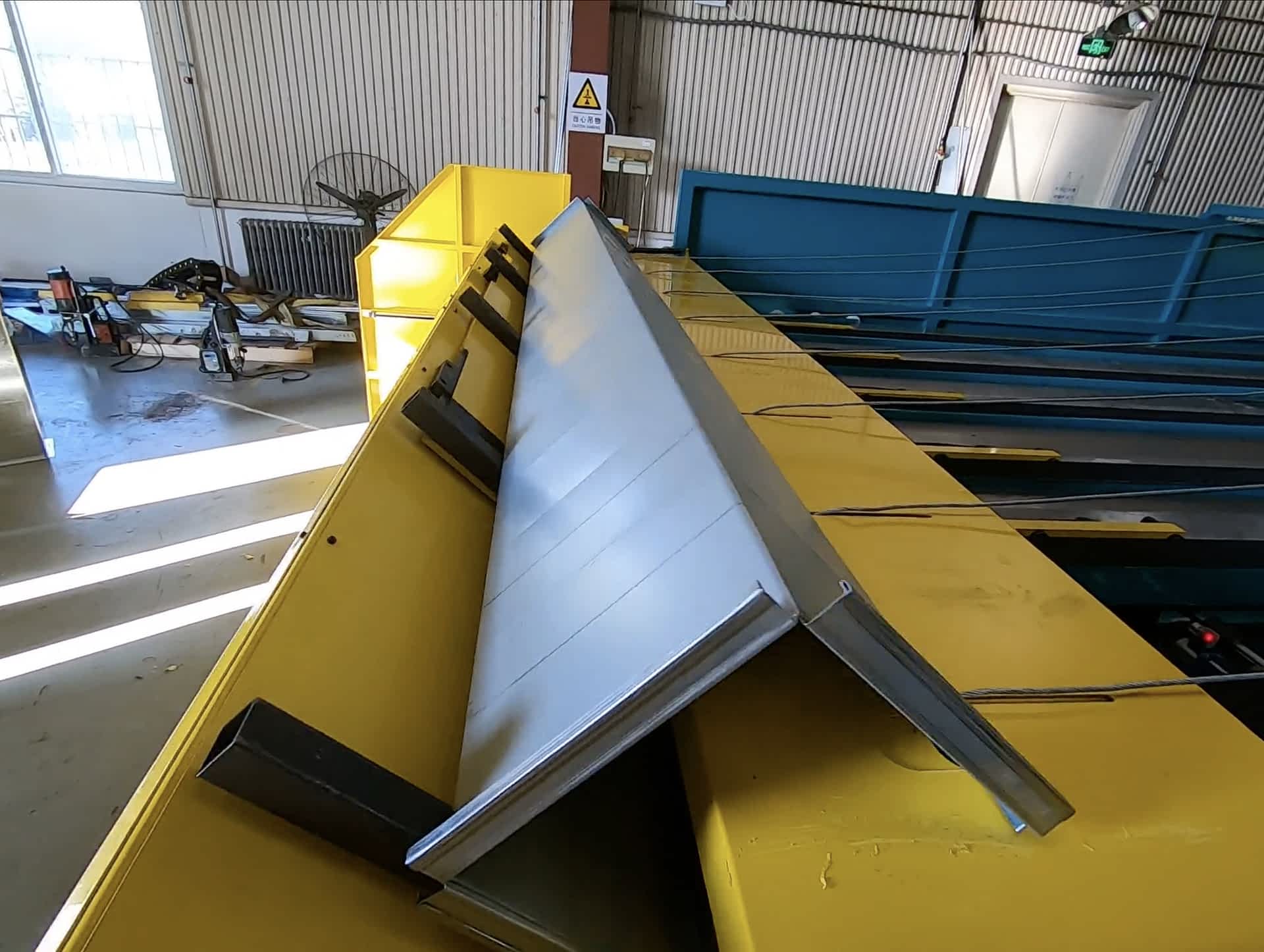

  • “L”, “U”, and full wrap duct type capability
  • Up to 75 FPM
  • Touch screen Human Machine Interface (HMI) with comprehensive diagnostic system
  • Up to 12 coil stations with fast change over 12,000 capacity each (20,000 lbs available on request)

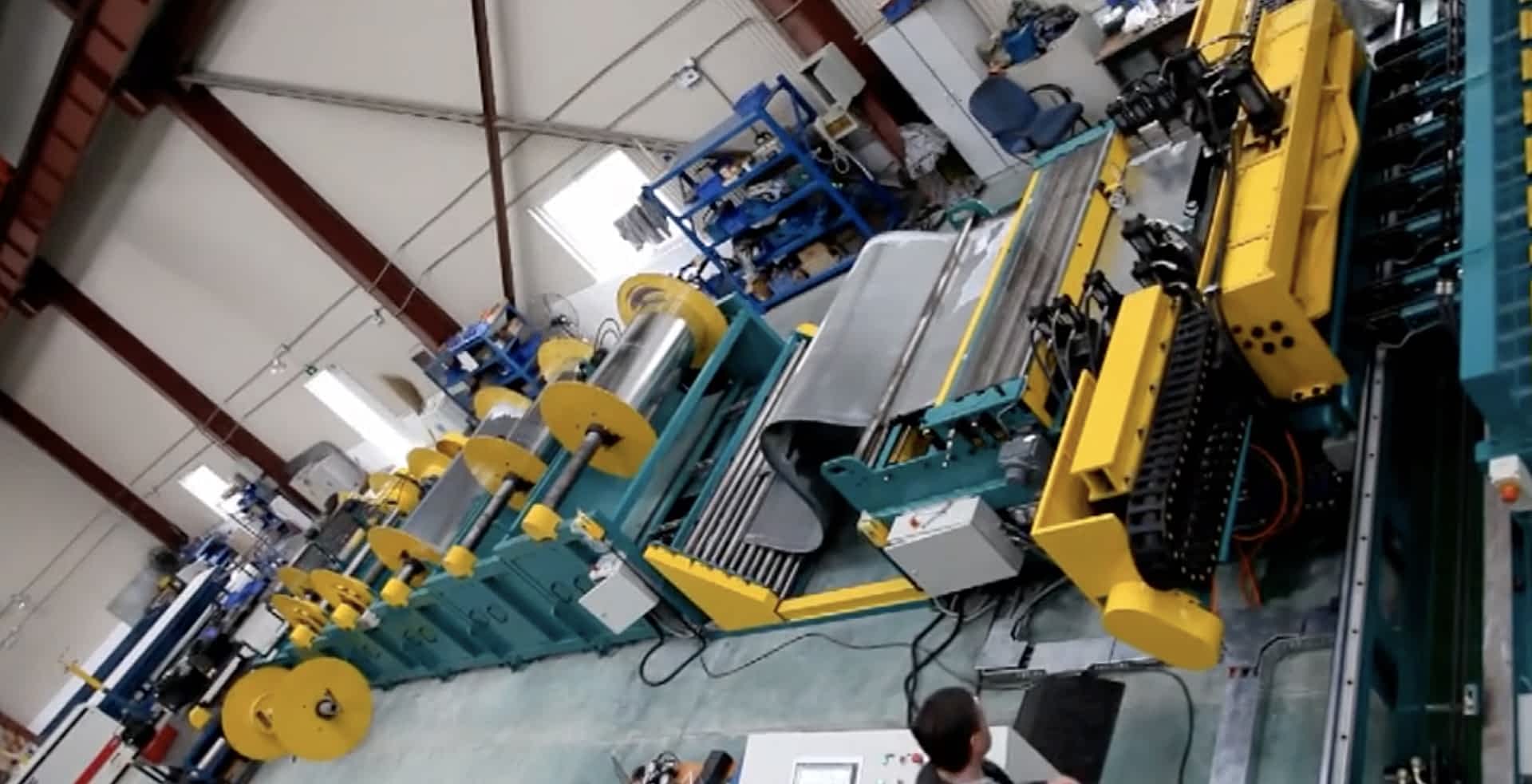

  • Underfed multi-grid hydraulic powered driven uncoilers
  • EZ-Load coil spools, for one man safe and easy coil loading
  • Heavy duty hydraulic hold down rolls to prevent clock spring effect and allow hands off coil handling
  • Automated coil selection with powered feed rolls

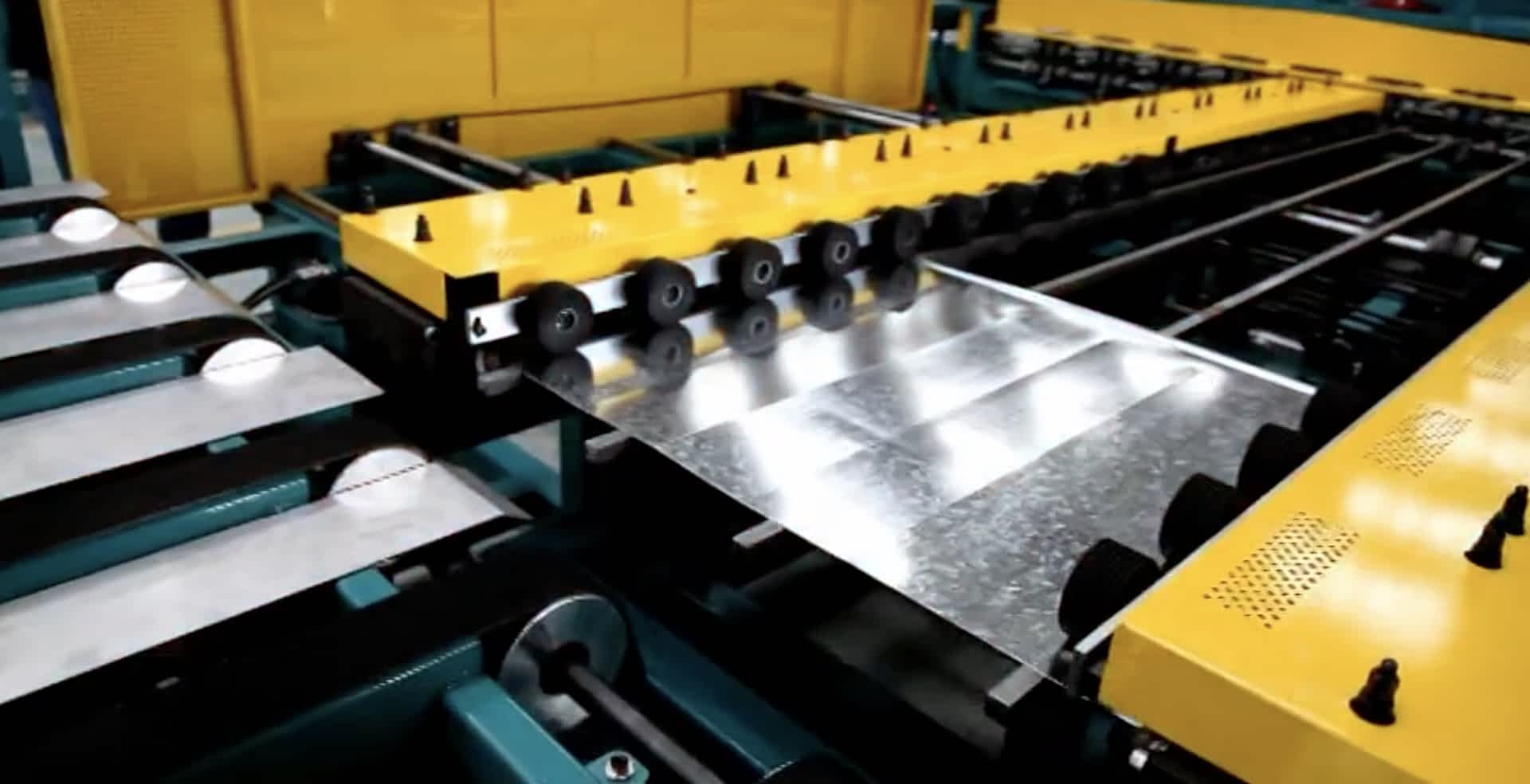

  • Heavy duty straightener and beader

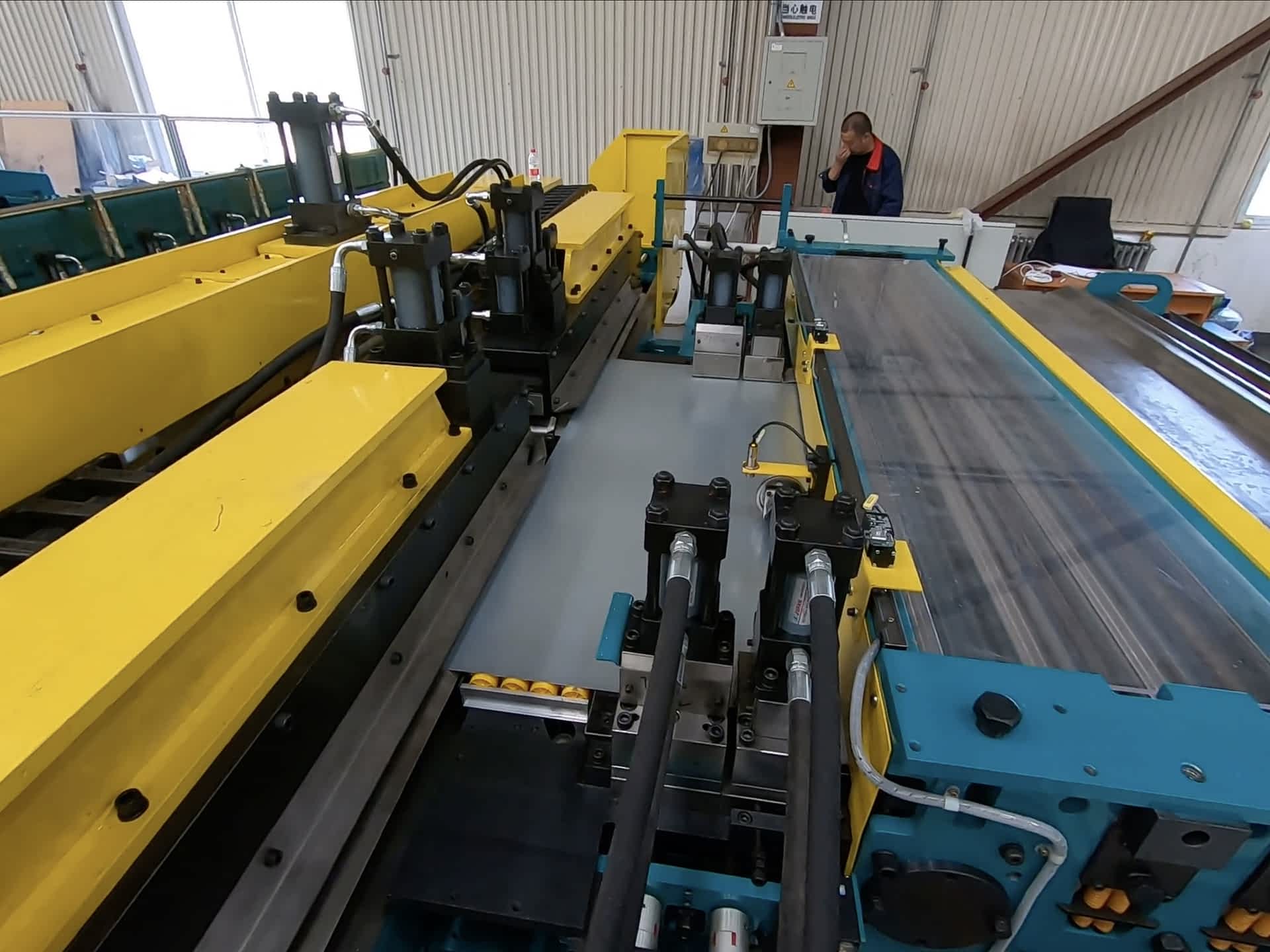

  • Heavy duty hydraulic notchers for slip and drive and transverse duct connector (TDC) flange
  • Heavy duty hydraulic shear

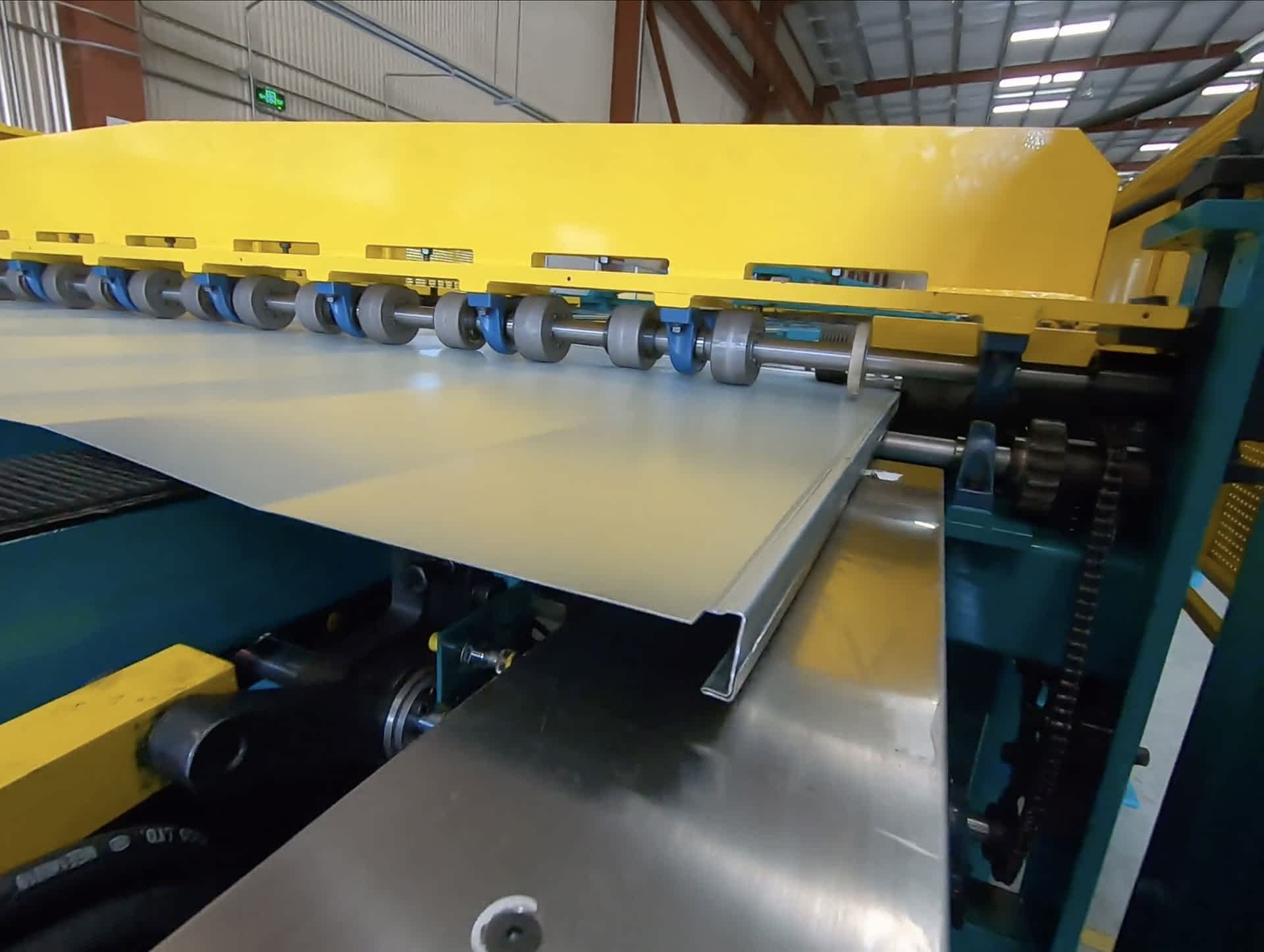

  • Two seam types available (1/2″ or 5/16″ Pittsburgh or button punch snap lock)

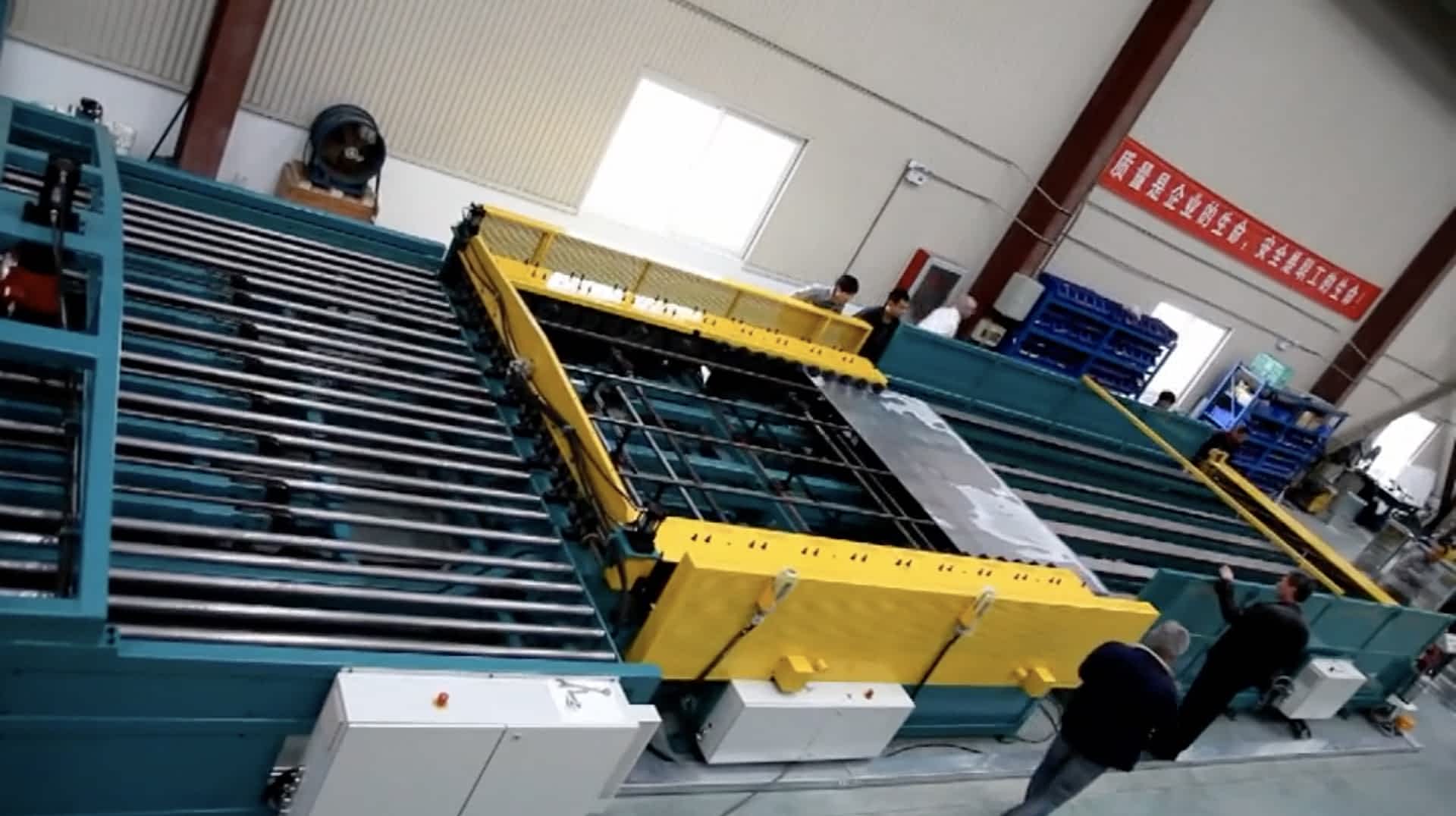

  • Wrap brake 14’9″ available with straight line configuration; 9’10” with L shaped line
  • Download option available
  • Heavy duty construction, all hydraulic activation guarantees a very long life time and low maintenance
  • Maintenance friendly design allows easy access to valve banks and drive components
  • User friendly industrial PLC control system
  • Servo motor system guarantees long life and consistent part quality

Model

Capacity

Speed

Iowa Precision Fabriduct Infinity Coil Line

16-25 gauge

Feed rates up to 75 FPM

Iowa Precision Fabriduct Infinity Coil Line
